Component Description

MACRACK products are 100% Australian made and manufactured using high-quality materials. We don’t cut corners with cheap imported materials, allowing us to provide superior warehouse shelving with a lifetime guarantee. If you’re looking for reliable pallet racking in Brisbane or anywhere in Australia, MACRACK can customise a storage system to suit your warehouse design and support your day-to-day operations.

Racking Components

Racking Components


Bill of Materials

  1. FOOTPLATE (STANDARD)
  2. FRAME
  3. BACK TIE
  4. LOAD BEAM
  5. HALF BAY LOAD BEAM
  6. FRAME END GUARD
  7. ANGLE POST PROTECTOR
  8. CORNER POST PROTECTOR
  9. PALLET GUIDE (DOUBLE DEEP)
  10. FORK ENTRY BAR (STANDARD)
  11. FORK ENTRY BAR (HEAVY DUTY)
  12. DRUM/COIL SUPPORT
  13. BOARD SUPPORTS
  14. BOARD
  15. SHELF SEPARATOR
  16. MESH BACKING

Standard Racking Sizes

Frame Sizes:

Most pallet racking derives from the imperial ‘foot and inches’ measuring system, and the MACRACK frame is designed in the same way using 3 inch increments (76.2mm).

Our standard height frames are as follows:

Imperial (feet)
3′
4′
5′
6′
7′
8′
9′
10′
11′
Metric (mm)
914
1219
1524
1829
2134
2438
2743
3048
3353
Imperial (feet)
12′
13′
14′
15′
16′
17′
18′
19′
20′
Metric (mm)
3658
3962
4267
4572
4877
5182
5487
5791
6096
Imperial (feet)
21′
22′
23′
24′
25′
26′
27′
28′
29′
Metric (mm)
6501
6706
7010
7315
7620
7925
8223
8534
8840

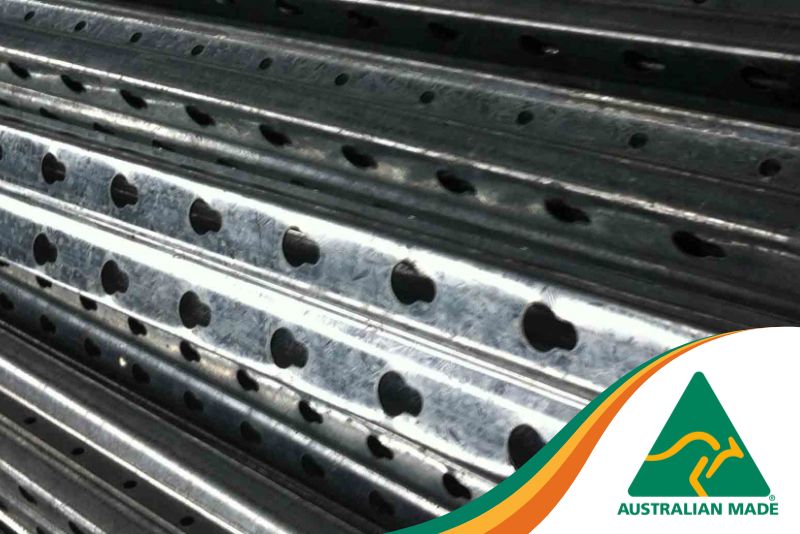

Racking Upright

Frame Types:

Macrack has different grades of frames which allows us to increase the weight load capacity of the frame or reduce it depending on the application:

Medium Galvanised

Our standard Medium Galvanised (MGAL) frame is used for most applications. It is pre-galvanised, making it rustproof, and is made to withstand daily applications. MGAL frames are perfect for applications such as Pallet Racking, Mezzanine Floors, Industrial Shelving.

Heavy Galvanised

The next grade in frames is our Heavy Galvanised (HGAL) frame. These frames are made from a thicker material that can be exposed to further stress. We generally use HGAL frames for Drive in Racking or Cantilever.

Heavy Heavy Galvanised

The Heavy Heavy Galvanised (HHGAL) frame is the most heavy-duty frame we offer. It is thicker and wider and can take an extraordinary amount of weight. We use this upright section when we need to push the limits of the engineering world, whether it be 10m high  Narrow Aisle Racking or Coil racks that take 20 Ton, we can achieve engineering greatness.

Load Beam:

The standard MACRACK beam is designed to accommodate typical pallet sizes that derive from the ‘foot and inches’ measuring system. We can also easily custom-make any length beam that suits your needs at no extra cost.

Our standard beam lengths are as follows:



Imperial (feet)
4’6″
5′
8’6″
9′
10′
11′
12′
13′
Metric (mm)
1372
1524
2590
2743
3048
3353
3683
3962

Pallet Beam



Beam Weight Load

Beams are allocated a weight-load rating based on their specific engineering calculations. The length, profile (height and width), and material thickness of the beams are calibrated together to determine their maximum weight load. We use the term ‘Uniformly Distributed Load’ (UDL) to refer to beam weight load. This refers to the weight that a pair of beams can withstand when the weight is distributed over the whole length.

RHS Rolled Rolled RHS Rolled RHS Rolled
Metric (mm) 50×50 70×50 92×50 100×50 112×50 125×75 140×50





Beam Macrack
