Narrow Aisle Racking

Narrow Aisle Racking Brisbane

Macrack Narrow Aisle Racking

Optimise your floor space and get the most out of your storage with our narrow aisle pallet racking for sale. Used mainly for high volume and busy traffic areas. This storage solution is perfect for getting the most out of your floor space, room height, restricted walkway access and high density storage requirements, whilst facilitating full accessibility and stock rotation.

This racking solution is used in conjunction with very narrow aisle forklifts. The trucks are guided through the walkway, which allows faster and easier operation. Electronic guidance frequently replaces the rail guidance. The design of the guidance at ground level is dependent on the type of lift truck being used. Low guidance profiles facilitate placement of pallets at floor level. High guidance profiles do require additional bottom beams.

The system requires the need for a specialised high lift fork truck which operates in a very constricted space and requiring pallets to be of a uniform size with specific stock locations.

Whether you are looking for industrial narrow aisle racking units for sale or a full warehouse racking design and quote call the team on 07 3343 9788.


  • Ideal for high- bay applications
  • Increase in warehouse area usage via minimal aisle width
  • Unrestricted access to stock
  • Efficient pallet handling and picking on all levels.
  • Offers better floor utilisation.
  • Configured for maximum storage and efficiency.
  • Suitable for warehouses where the storage footprint is limited.
  • Maximise full the warehouse height.
  • Added value of system offsets cost.

Material Handling Equipment: Stock Picker
Hand-picking: Yes, on lower shelves
Ideal for: Manually handled large items like furniture

Price: POA

As a racking manufacturer our systems are often made to order to best suit your business needs. All our products are ‘price on application’ (POA). But don’t despair, we are willing to give you a price over the phone. No job too big or small call now on 07 3343 9788.

Contact Macrack Today

Ask our team for a free design and quote

What Is Narrow Aisle Racking?

Are you storing furniture?

Or does your operation involve a stock picker?

You need a narrow aisle racking system – and MACRACK should be your first choice.

Narrow aisle racking, or furniture racking, is essentially a supersized pallet racking system. Narrow aisle racking is made up of big shelves capable of storing large goods, furniture items, and other cumbersome products.

These racks are usually accessed by a stock picker rather than a forklift. Stock pickers are a personnel platform that allows the driver to move around the warehouse like a forklift; however, they go up and down on the platform instead of always being ground level. This is great when items are not stored on pallets and need to be manually handled, as the staff can walk into the racking system from their platform.

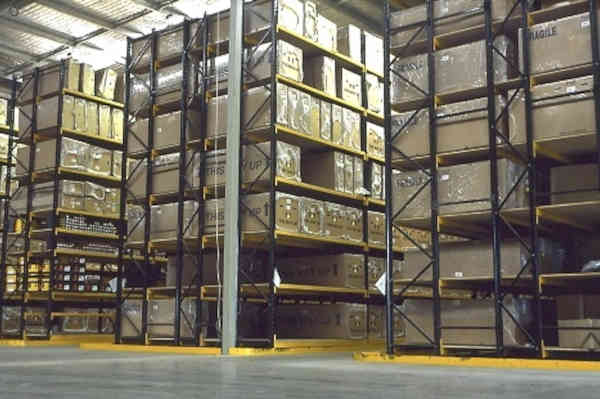

narrow aisle pallet racking brisbane

The Advantages of Narrow Aisle Racking Systems

Using a furniture racking system will greatly increase the efficiency of your warehouse space and allow items to be stored correctly with reduced risk of damage. The system’s flexibility means that small items, such as lamps, can be stored next to larger items, such as couches. Another major benefit is an increased storage capacity. As the aisles are so narrow, and for each vertical level you essentially gain the same amount of floor space again, you may be able to triple or even quadruple the amount of area available for storing your stock!

The name of the narrow aisle racking system is related to the machines that operate in the space. Since staff are going up and down on the stock picker, there is a risk of falling if there isn’t racking on either side to act as a boundary. To reduce or eliminate the risk of injury, we design and measure the aisles to always have protection on both sides of the picker.

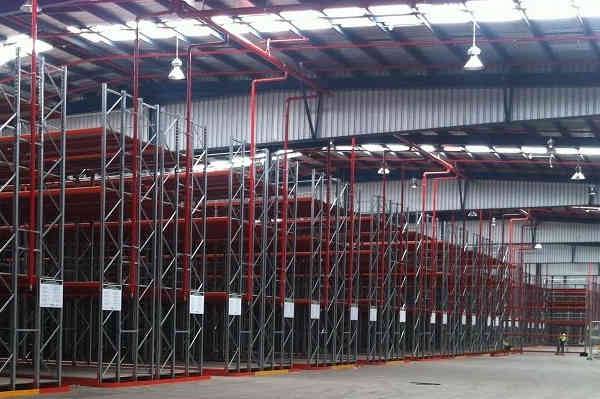

narrow aisle racking brisbane

Why This System Works So Well

The furniture racking system is based around the idea that large pigeon holes/picking areas would suit larger items. So we do just that – it’s really that simple. We have shelf levels spaced out just above head height, and each level has particle board screwed to the top allowing staff to walk into the racking system and pick items for their orders.

As an extra precaution, we include a guide rail on all our furniture racks to prevent accidental damage to the racking from the stock picker. This is 75mm x 100mm x 8mm, made of steel, and Dyna-bolted to the ground every couple of hundred millimetres. This ensures the racking – and your staff – are safe from harm.

There are few restrictions for furniture racks. You can:

  • Go as high as you like
  • Include as many levels as you want
  • Space the levels out differently
  • Change the depth of the levels.

There are plenty of options and room for customisation, and MACRACK’s warehouse experts will work with you to create the optimal solution for you and your organisation.

Many of our bigger clients use this system, but it can also be scaled down to suit smaller companies as well. If you need to store furniture or cumbersome items, give MACRACK a call and one of our professional, experienced staff members will be happy to assist you.

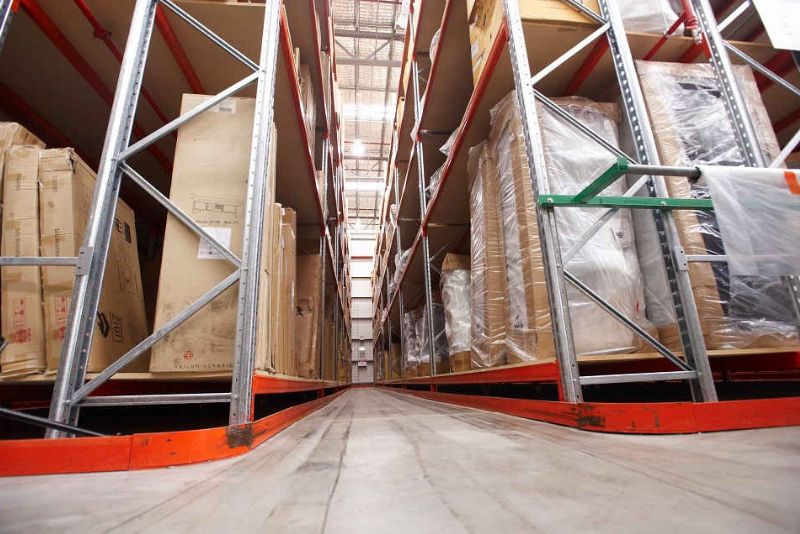

furniture racking brisbane

Get A Free Design And Quote

Ensure Your Warehouse Storage Solution Has A Lifetime Guarantee Call Us Today
