Brisbane QLD Manufacturing Facility
Based in Brisbane and proudly servicing clients Australia wide, MACRACK is Australia’s leading pallet racking company, producing strong and durable pallet racking systems that last. Our success can be accredited to our quality Australian Made product, which holds a confident lifetime guarantee.
MACRACK enjoys a strongly respected reputation amongst our loyal customer base after supplying pallet racking, industrial racking, storage shelves and an endless variety of other storage equipment to a wide array of industries for over 40 Years. When you need a solid pallet rack solution for your business, MACRACK delivers.
Whether you are looking for pallet racking or a full warehouse racking design and quote call the team on 1800 048 821.
As a racking manufacturer our systems are often made to order to best suit your business needs. All our products are ‘price on application’ (POA). But don’t despair, we are willing to give you a price over the phone. No job too big or small.
Selective Racking
Macrack’s selective pallet racking product is the ideal solution for most warehouse environments as it provides easy accessibility to all pallets loaded into the system and is simple to install. As a pallet racking manufacturer our selective pallet racking product can be designed to meet virtually any pallet size or weight and can be used in conjunction with all types of lift trucks.
Double Deep Racking
Macrack’s double deep pallet racking product is a cost-effective pallet storage solution. Offering up to 40% more storage capacity than selective racking, our double deep racking is an excellent solution for maximising warehouse space. With this system, pallets are stored two deep in each bay and are accessed using specialised reach trucks or forklifts with longer tynes. Because double deep racking operates on a last-in, first-out basis, it is ideal for warehouses carrying larger quantities of the same or similar SKUs.
Drive-In Racking
Macrack’s drive-in pallet racking product is designed for storing large quantities of similar products. These are stored depth wise, beside each other, on continuous pallet supporting rails. As a result, a high storage density is obtained and thereby a high utilisation of floor space. This racking system is also ideal for places where space is expensive, such as coldrooms.
Push Back Racking
Macrack’s push back pallet racking product is a Last-In First-Out (LIFO) dynamic cart on rail pallet storage system. It comprises a number of storage lanes, up to 6 pallets deep, where pallets are located on carts with each successive pallet ‘pushed back’ on a separate cart along on a pair of structural steel rails supported within a rack framework. Storage lanes are installed at a gradient allowing the rear pallets to travel forwarded by the force of gravity.
Pallet Flow Racking
Macrack’s pallet flow racking product provides efficient, ultra-dense storage for palletised goods, helping reduce the number of aisles required while maintaining effective first in, first out stock rotation. It uses an industrial poly track on incrementally lowered beams to automatically move products loaded at the back of the system towards the front. The goods/pallets are inserted at the onload face on inclined tracks with rollers, and travel down under the force of gravity, while keeping one pallet at the front for immediate pick at all times.
Compare pallet racking systems
Compare pallet access, storage density and stock rotation to find a system that suits your warehouse.
| Feature | SelectiveView system → | Double deepView system → | Push backView system → | Drive inView system → | Pallet flowView system → |
|---|---|---|---|---|---|
| Direct access to every pallet | Yes | No | No | No | No |
| Stores pallets two or more deep | No | Yes | Yes | Yes | Yes |
| Increases storage density compared with selective racking | No | Yes | Yes | Yes | Yes |
| Supports FIFO stock rotation¹ | Yes | No | No | No | Yes |
| Uses LIFO retrieval within each storage lane² | No | Yes | Yes | Yes | No |
| Compatible with a standard forklift³ | Yes | No | Yes | Yes | Yes |
| Forklift stays outside the racking when loading and unloading | Yes | Yes | Yes | No | Yes |
| Remaining pallets automatically move forward after unloading | No | No | Yes | No | Yes |
| Loading and unloading occur at the same face | Yes | Yes | Yes | Yes | No |
| Separate loading and unloading faces | No | No | No | No | Yes |
| Different products can have their own pick face at each level | Yes | Yes | Yes | No | Yes |
Want Expert Racking Advice?
Speak to the team at Macrack about a free design and quote.
Racking Dimensions
MACRACK can customise a storage system to suit your warehouse design and support your day-to-day operations.
Standard Racking Sizes
Frame Sizes:
Most pallet racking derives from the imperial ‘foot and inches’ measuring system, and the MACRACK frame is designed in the same way using 3 inch increments (76.2mm).
Our standard height frames are as follows:
Imperial (feet) |
Metric (mm) |
|---|---|
|
3′
|
914 |
|
4′
|
1219 |
|
5′
|
1524 |
|
6′
|
1829 |
|
7′
|
2134 |
|
8′
|
2438 |
|
9′
|
2743 |
|
10′
|
3048 |
|
11′
|
3353 |
Imperial (feet) |
Metric (mm) |
|---|---|
|
12′
|
3658 |
|
13′
|
3962 |
|
14′
|
4267 |
|
15′
|
4572 |
|
16′
|
4877 |
|
17′
|
5182 |
|
18′
|
5487 |
|
19′
|
5791 |
|
20′
|
6096 |
Imperial (feet) |
Metric (mm) |
|---|---|
|
21′
|
6501 |
|
22′
|
6706 |
|
23′
|
7010 |
|
24′
|
7315 |
|
25′
|
7620 |
|
26′
|
7925 |
|
27′
|
8223 |
|
28′
|
8534 |
|
29′
|
8840 |
Medium Galvanised
Our standard Medium Galvanised (MGAL) frame is used for most applications. It is pre-galvanised, making it rustproof, and is made to withstand daily applications. MGAL frames are perfect for applications such as Pallet Racking, Mezzanine Floors, Industrial Shelving.
Heavy Galvanised
The next grade in frames is our Heavy Galvanised (HGAL) frame. These frames are made from a thicker material that can be exposed to further stress. We generally use HGAL frames for Drive in Racking or Cantilever.
Heavy Heavy Galvanised
The Heavy Heavy Galvanised (HHGAL) frame is the most heavy-duty frame we offer. It is thicker and wider and can take an extraordinary amount of weight. We use this upright section when we need to push the limits of the engineering world, whether it be 10m high Narrow Aisle Racking or Coil racks that take 20 Ton, we can achieve engineering greatness.
Load Beam:
The standard MACRACK beam is designed to accommodate typical pallet sizes that derive from the ‘foot and inches’ measuring system. We can also easily custom-make any length beam that suits your needs at no extra cost.
Our standard beam lengths are as follows:
Beam Weight Load:
Beams are allocated a weight-load rating based on their specific engineering calculations. The length, profile (height and width), and material thickness of the beams are calibrated together to determine their maximum weight load. We use the term ‘Uniformly Distributed Load’ (UDL) to refer to beam weight load. This refers to the weight that a pair of beams can withstand when the weight is distributed over the whole length.
Imperial (feet) |
Metric (mm) |
|---|---|
|
4’6″
|
1372 |
|
5′
|
1524 |
|
8’6″
|
2590 |
|
9′
|
2743 |
|
10′
|
3048 |
|
11′
|
3353 |
|
12′
|
3683 |
|
13′
|
3962 |
Metric (mm) |
|
|---|---|
|
RHS
|
50×50 |
|
Rolled
|
70×50 |
|
Rolled
|
92×50 |
|
RHS
|
100×50 |
|
Rolled
|
112×50 |
|
RHS
|
125×75 |
|
Rolled
|
140×50 |
The MACRACK Product

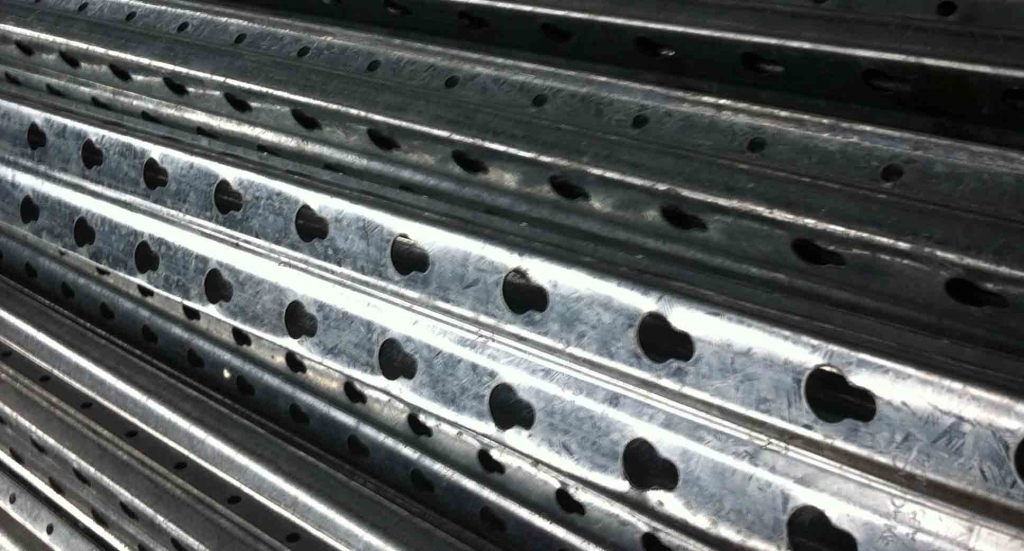

The MACRACK product has several key determining features that make it superior to competitors. Our frames are made from cold-rolled, pre-galvanised steel with a distinct keyhole punching. This profile enables ease of use to both install and adjust your pallet racking.

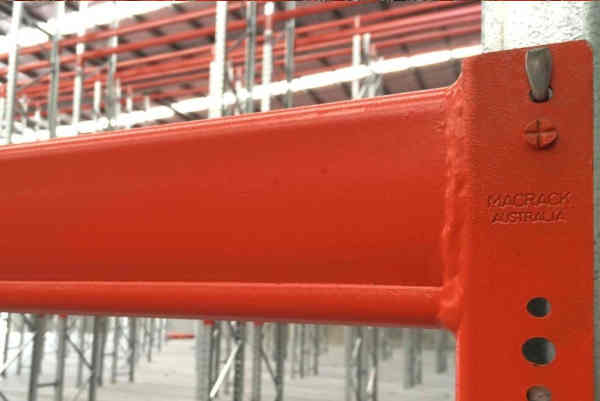

Our beams are made from roll-formed steel, and our beam sizes can be adjusted to suit both your weight load and the width of your bay. These beams are electrostatically coated in two layers of hi-vis orange.

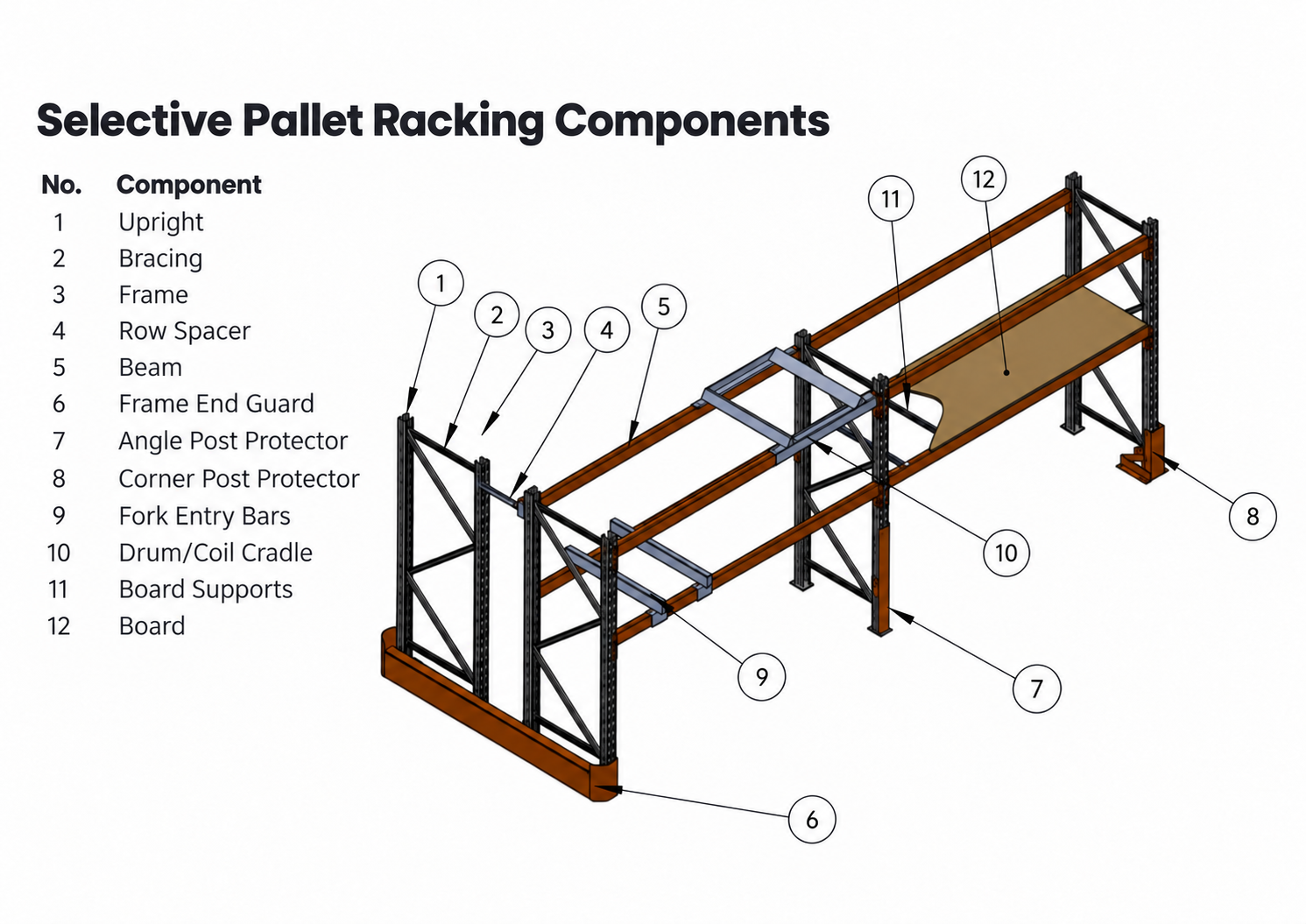

Our component description page offers a visual guide to assist you with deciding which components might be right for you.
Rack Installation Service
Need racking installed professionally? Moving warehouse? We offer competitive flat rates for our expert installation services. Macrack has a vast network of racking installers across Australia including Brisbane, Queensland, Sydney, Melbourne, Adelaide, Hobart, Perth, and Cairns. You can rest assured that when we install our Australian Made pallet racking, it’s to the highest standard and will be done correctly, so you can enjoy your pallet racking system for years to come.
Meeting and Exceeding Australian Standards
All MACRACK products conform to the latest Australian standards for steel storage racking, often exceeding these standards with our renowned quality. Our product is independently certified and tested to ensure that only the highest-quality product leaves our manufacturing facility.
Other companies may claim to manufacture in Australia, but they often import their racking and offer a lesser-quality product. Before buying your pallet racking, ask for certification to the latest standard, as well as confirmation of where it is made.
Proudly Australian Made
Our warehouse pallet racking is made using only Australian steel, guaranteeing higher quality and less imperfections than imported materials. Even while using the best materials available, our product remains highly competitive in price. We understand that price is a determining factor in your decision process, which is why our pallet racking is made with your needs and budget in mind.
Short Lead Time
Don’t wait months on end for your product to arrive from overseas. If you need to set up quickly, we are the people to talk to for efficient, quality pallet racking installation.
We have a huge volume of stock available and can even make your custom product and have it out the door in less than a week! With MACRACK, you will be in your warehouse and operating before other companies even have their product in a shipping container.
Free Design and Advice
To discuss the available options for your warehouse, give us a call today: 1800 048 821. We can also come out to your site and measure your warehouse for free and create a plan layout. This enables you to visualise how the space will work, where your equipment will be located and where the racking would be most effective.
Our Lifetime Guarantee
We are proud of what we produce, which is why we offer a lifetime guarantee. You won’t get this offer with other racking suppliers; in fact, most won’t even certify their older styles of racking, so you could require new racking every couple of years to keep it certified.
We stand behind our lifetime guarantee because our frames are pre-galvanised, ensuring they will never rust. If you get mild steel frames, they will rust even with a painted finish – so why take the risk?
