Cantilever Racking Systems

Cantilever Rack Brisbane

Macrack Cantilever Racking

Cantilever racking is an ideal storage solution for storing long-length or awkward products such as long bars, timber, tubes, pipes, furniture and non-palletised items.

This storage solution accommodates the need for quick and easy height and width positioning of goods. Its arms can be placed at suitable levels for maximum utilisation of vertical space. A flexible solution for both double-sided and wall access applications.

We offer both single and double sided cantilever racking for sale whether it be for a light or heavy duty application. Single sided is designed to fit flush against a wall and the double sided system is designed to maximise storage available on a single column.

Additionally, the support arms can vary in depth and capacity depending on the type of load. Open rows allow not only secure load support but also easy access, meaning safety, flexibility and selectivity are all maintained.


  • Ideal for the storage of beams, profiles, pipes, timber, etc.
  • Fully adjustable
  • Easy access for any product.
  • Serviceable by any type of forklift

Material Handling Equipment: Forklift with standard tynes
Hand-picking: Yes, on lower shelves
Ideal for: Sheets of material like gyprock or long items like timber and pipes

Price: POA

As a racking manufacturer our systems are often made to order to best suit your business needs. All our products are ‘price on application’ (POA). But don’t despair, we are willing to give you a price over the phone. No job too big or small. Whether you are looking for industrial cantilever racking units for sale or a full warehouse racking design and quote call the team on 1800 048 821.

Contact Macrack Today

Ask our team for a free design and quote

What Is Cantilever Racking?

Cantilever racking is a pallet racking derived storage system. Cantilever racking combines the frame of a standard pallet racking system with the addition of solid arms and a bolted base making it ideal for storing timber, extrusions, pipes and other long loads.

The braces that separate the uprights in the frame of a cantilever racking system can be adjusted to be closer together to increase the weight load capacity or further apart for the storage of larger items. The length of the arms can also be customised to fit any load.

Storing long items? Want to maximise your floor space? You need cantilever racking – and MACRACK has the best solution available.

Cantilever Racking Systems Brisbane

What Is Cantilever Racking Used For?

The most common use for cantilever racking is to store long product, such as:

  • Timber packs
  • Plastic decking
  • Decking
  • Cyclone rod
  • Threaded rod
  • Timber extrusions
  • Ply wood
  • Plaster board
  • Gyprock
  • Irrigation

  • Cement sheet
  • Aluminium extrusions
  • Steel lengths
  • Window frames
  • Door frames
  • Security mesh
  • Plastic sheet
  • Timber sheet
  • Timber panels

  • Cornice
  • Mouldings
  • Flashings
  • Gutter
  • Car body
  • Cold room panel
  • Insulated panel
  • Plumbing supplies
  • Pipe

  • PVC Pipe storage
  • Agriculture pipe
  • Roller door
  • Garage door
  • Mining
  • Conduit
  • Steel grate
  • Roofing
  • Gutter

However, if your item isn’t listed here, that doesn’t mean it can’t be stored with cantilever! There is a huge range of product that can be stored and we can tailor a solution to your needs.

About Cantilever Racks

Cantilever systems are based around 4 components:

  • First is the base, which disperses weight into the ground – this is Dyna-bolted to the ground to prevent it from moving.
  • Second is the frame that holds everything up and needs to be solid.
  • Third is the arms, which come in a variety of lengths and weight capacities.
  • Last is the cross beams, which space out the frames and allow bigger or smaller gaps depending on what product is being stored.

Customised Cantilever Racks to Suit Your Business

MACRACK uses a frame-derived solution for our cantilever racks, which involves using our famous pallet racking uprights to create an adjustable system for storing goods. This allows us to be extremely flexible in what can be stored, how much can be stored, and how much weight you can put on it. Unlike many other systems, the MACRACK system can be tailored to suit your exact requirements. For instance, we can adjust the distance between the uprights, saving you money by reducing the amount of frames needed to store your product. Alternatively, we can put more in to boost the weight capacity.

Other customisation options we offer include arm variations. We can provide a wide range of arm lengths, changing how much weight an arm can hold and how many you want per frame (i.e. the number of levels).

We often get asked, “How much for a cantilever rack?” Well, the answer isn’t that simple because everyone requires different performance capabilities. Some may want a short rack with 2 arms, while others may want a 5m-high rack with 8 arms. We can cater to all because our system is so flexible. This is why you should talk to a professional when buying a cantilever system, and you should never feel forced into using something that isn’t perfect for you.

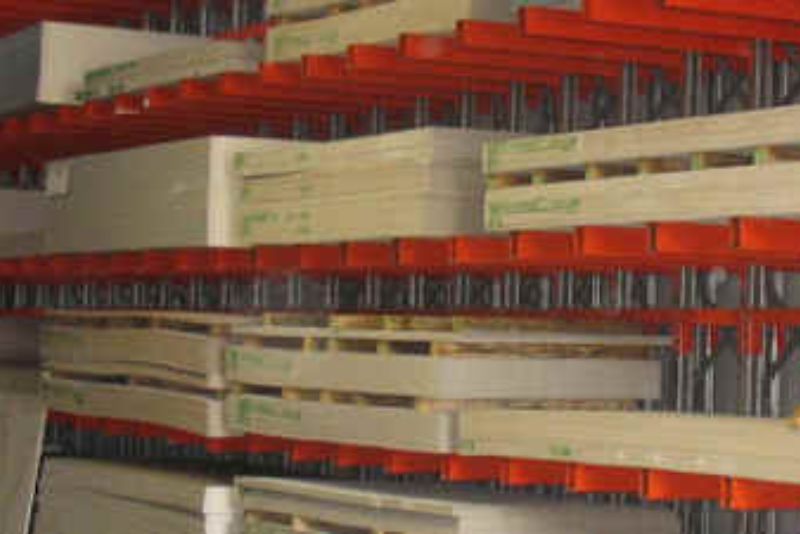

cantilever racking as sheet racking

Manufactured Locally for Aussie Businesses

All our products are 100% Australian-made – a fact that we are unashamedly proud of. We support Australian businesses and you should too. We find that a lot of other companies import from overseas and the quality is just not the same. We know the quality of our racking is exceptional, which is why we offer a lifetime guarantee on all our products.

The frames we use for our cantilever racks are made from pre-galvanised steel, which means they will never rust – so you can confidently place your racks outside if you need to. We also offer the arms and bases in a hot-dipped galvanised finish, making them rust-proof as well.

So what are you waiting for? Want more floor space? Want to store your long items more efficiently? Get the MACRACK cantilever racking system in your warehouse. Contact us today to discuss your needs with a storage expert.

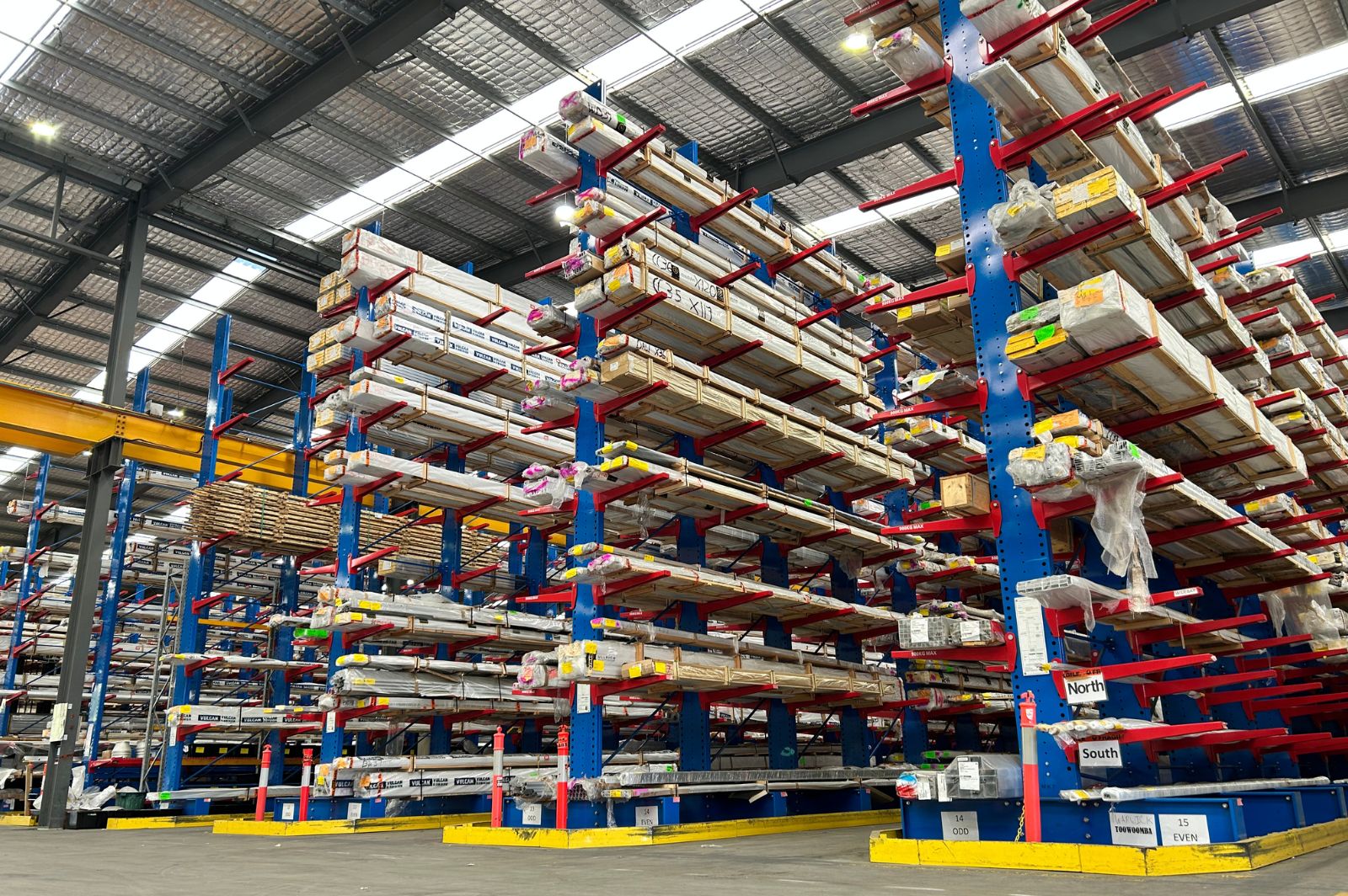

cantilever racking brisbane
