Conduit Racking Brisbane QLD & Australia Wide

Conduit Racking Brisbane QLD & Aus Wide

Conduit is an awkward item to store, and it’s often stored against a wall. This may be fine for a couple of pipes, but the more you store, the greater the force against the wall. You may soon find you have hundreds, or even thousands, of kilograms pushing against your wall creating an unsafe environment.

Safer Storage Of Conduit

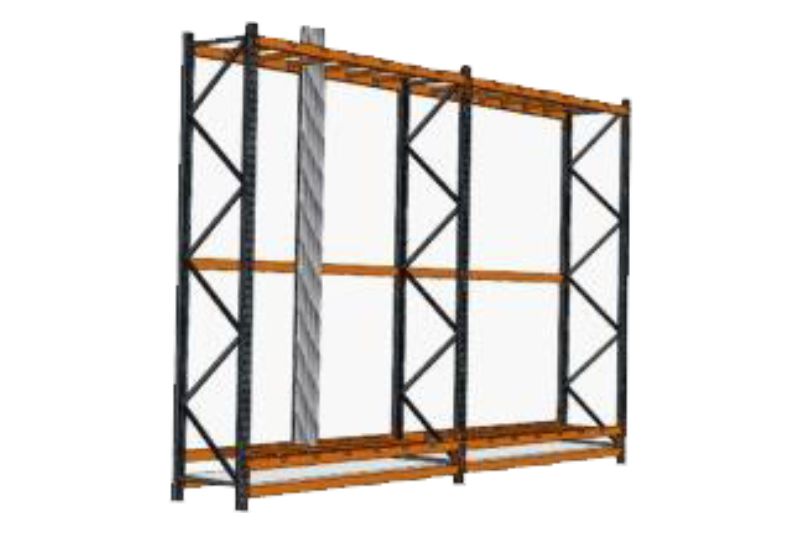

This system is designed to allow all of the lateral force of the conduit to be redirected into the racking system, making the storage of conduit safer than ever before. These racks also include dividing arms to separate conduit by colour, size, and other factors for improved organisation

For pricing on Conduit Racking Brisbane, QLD and Australia wide contact us for a quote today.

Request Pricing

Price: POA

As a racking manufacturer our systems are often made to order to best suit your business needs. All our products are ‘price on application’ (POA). But don’t despair, we are willing to give you a price over the phone. No job too big or small. For our conduit racking for sale call the team on 1800 048 821.

Contact Macrack Today

Ask our team for a free design and quote

1800 048 821

Some Of Our Racking Projects

Lovehoney

We created a grid style layout with full length corridors which optimised the hand picking efficiency. This creates a logical layout system of rack locations for quickly identifying product locations.

STAUFF

Macrack utilises this system to work with the structural member of the mezzanine floor to make sure integration is key and excess material is not required.

NIO Selective Racking and Multi Tier Raised Storage Area

NIOA

Using a 4 levels raised storage area, Macrack was able to essentially grow NIOA’s floor space the equivalent of an extra 3 football fields, with shelving throughout.

Racking Dimensions

MACRACK can customise a storage system to suit your warehouse design and support your day-to-day operations.

Standard Racking Sizes

Frame Sizes:

Most pallet racking derives from the imperial ‘foot and inches’ measuring system, and the MACRACK frame is designed in the same way using 3 inch increments (76.2mm).

Our standard height frames are as follows:

Imperial (feet)	Metric (mm)
3′	914
4′	1219
5′	1524
6′	1829
7′	2134
8′	2438
9′	2743
10′	3048
11′	3353

Imperial (feet)	Metric (mm)
12′	3658
13′	3962
14′	4267
15′	4572
16′	4877
17′	5182
18′	5487
19′	5791
20′	6096

Imperial (feet)	Metric (mm)
21′	6501
22′	6706
23′	7010
24′	7315
25′	7620
26′	7925
27′	8223
28′	8534
29′	8840

Medium Galvanised

Our standard Medium Galvanised (MGAL) frame is used for most applications. It is pre-galvanised, making it rustproof, and is made to withstand daily applications. MGAL frames are perfect for applications such as Pallet Racking, Mezzanine Floors, Industrial Shelving.

Heavy Galvanised

The next grade in frames is our Heavy Galvanised (HGAL) frame. These frames are made from a thicker material that can be exposed to further stress. We generally use HGAL frames for Drive in Racking or Cantilever.

Heavy Heavy Galvanised

The Heavy Heavy Galvanised (HHGAL) frame is the most heavy-duty frame we offer. It is thicker and wider and can take an extraordinary amount of weight. We use this upright section when we need to push the limits of the engineering world, whether it be 10m high Narrow Aisle Racking or Coil racks that take 20 Ton, we can achieve engineering greatness.

Load Beam:

The standard MACRACK beam is designed to accommodate typical pallet sizes that derive from the ‘foot and inches’ measuring system. We can also easily custom-make any length beam that suits your needs at no extra cost.

Our standard beam lengths are as follows:

Beam Weight Load:

Beams are allocated a weight-load rating based on their specific engineering calculations. The length, profile (height and width), and material thickness of the beams are calibrated together to determine their maximum weight load. We use the term ‘Uniformly Distributed Load’ (UDL) to refer to beam weight load. This refers to the weight that a pair of beams can withstand when the weight is distributed over the whole length.

Imperial (feet)	Metric (mm)
4’6″	1372
5′	1524
8’6″	2590
9′	2743
10′	3048
11′	3353
12′	3683
13′	3962

Metric (mm)
RHS	50×50
Rolled	70×50
Rolled	92×50
RHS	100×50
Rolled	112×50
RHS	125×75
Rolled	140×50

The MACRACK Product

The MACRACK product has several key determining features that make it superior to competitors. Our frames are made from cold-rolled, pre-galvanised steel with a distinct keyhole punching. This profile enables ease of use to both install and adjust your pallet racking.

Our beams are made from roll-formed steel, and our beam sizes can be adjusted to suit both your weight load and the width of your bay. These beams are electrostatically coated in two layers of hi-vis orange; however, for a small additional cost, we can tailor the colours to suit your company’s style. We are the only company in Australia that can offer this service, and it allows for a great finish to your warehouse.

Our component description page offers a visual guide to assist you with deciding which components might be right for you.

Rack Installation Service

Need racking installed professionally? Moving warehouse? We offer competitive flat rates for our expert installation services. Macrack has a vast network of racking installers across Australia including Brisbane, Queensland, Sydney, Melbourne, Adelaide, Hobart, Perth, and Cairns. You can rest assured that when we install our Australian Made pallet racking, it’s to the highest standard and will be done correctly, so you can enjoy your pallet racking system for years to come.
